Individual Cabinet Assembly Instructions

Shaker Chestnut

Recommended Tools:
Flathead / Philips Screwdriver
Required Tool
Electric Screwdriver
Recommended Tool
Rubber Head Hummer
Recommended Tool
3/4" Staples Gun
Recommended Tool
Hot Glue Gun
Recommended Tool

Base Cabinet

STEP 1:

Screw posts into pre-drilled holes of the side panels.

Kitchen Cabinets - Assembly Picture
STEP 2:

Screw posts into pre-drilled holes of the frame.

Kitchen Cabinets - Assembly Picture
STEP 3:

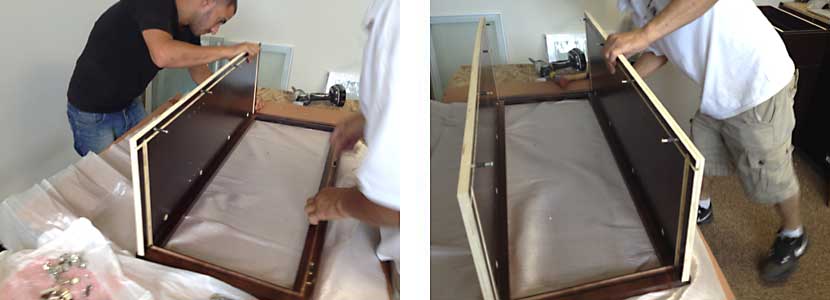

Place side panels into the grooves of the frame without tightening the cam locks.

Kitchen Cabinets - Assembly Picture
STEP 4:

Slide the floor panel of the cabinet into the grooves of the side panels and place the back panel into the grooves and posts of the side panels.

Kitchen Cabinets - Assembly Picture
STEP 5:

Tighten all cam locks of the base assembly.

Kitchen Cabinets - Assembly Picture
STEP 6:

Lay the cabinet onto its back and attach the toe kick.

Kitchen Cabinets - Assembly Picture
STEP 7:

Attach and screw into place the plastic glide brackets.

Kitchen Cabinets - Assembly Picture
STEP 8:

Place the back of the glide into the bracket and pull the glide flush with the front of the frame.  Secure the glide to the 3/4" inside drawer opening of the frame with one screw (the glide does not touch the side panel of the cabinet).

Kitchen Cabinets - Assembly Picture
STEP 9:

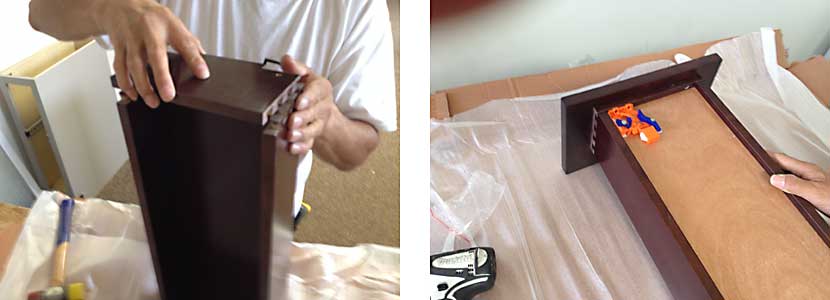

Assemble the drawer box.

Kitchen Cabinets - Assembly Picture
STEP 10:

Attach the glide finger-locks to the bottom of the drawer box.  The release levers will face the center of the drawer box.

Kitchen Cabinets - Assembly Picture
STEP 11:

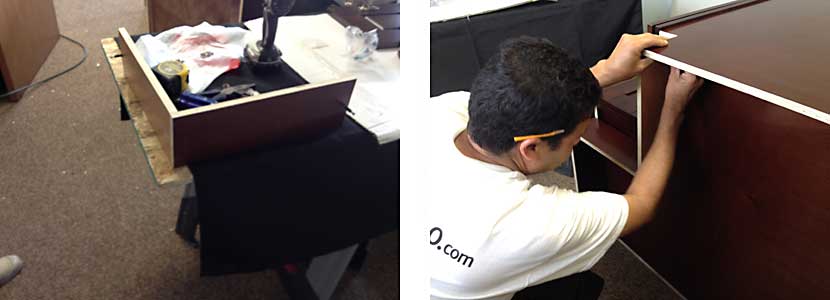

Pull the glides out and lay the drawer box onto the glides, pulling the glides into the finger-locks until they are engaged.

Kitchen Cabinets - Assembly Picture
STEP 12:

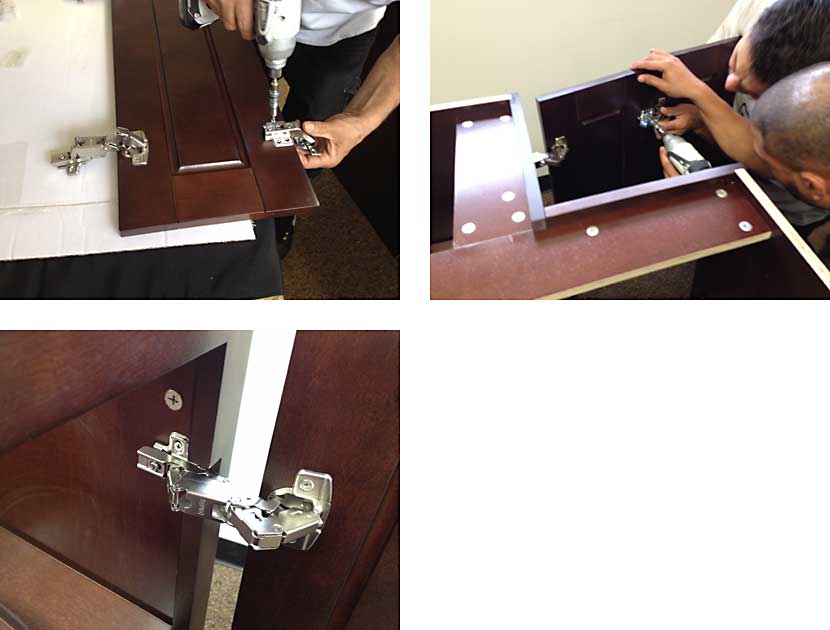

Attach the hinges to the door and the door to the cabinet.  Place the clear rubber bumpers on the door and drawer corners and install the shelf to complete assembly.

Kitchen Cabinets - Assembly Picture

Base Lazy Susan

STEP 1:

Screw posts into the pre-drilled holes of the side and back panels.

Kitchen Cabinets - Assembly Picture
STEP 2:

Attach the side panel (24" wide) to the back panel (36" wide) and secure by locking cams.

Kitchen Cabinets - Assembly Picture
STEP 3:

Insert the larger shelf with the lazy susan tray into the grooves at the bottom of the side and back panels.  Then attach the remaining side and back panels.

Kitchen Cabinets - Assembly Picture
STEP 4:

Attach the three cleats to the side panels and back panel using the black screws provided.  Check to insure that the cleats are level.

Kitchen Cabinets - Assembly Picture
STEP 5:

Assemble and install the cross braces to the back and side panels.  First, insert the small brace into the side panel.  Second, insert the long brace into the back panel, and then insert the long brace into the side panel.  Complete attachment by tightening the cam-locks.

Kitchen Cabinets - Assembly Picture
STEP 6:

Attach the frame piece with the hinge notches to the side panel, the brace and the bottom shelf.  Then attach the second frame piece.

Kitchen Cabinets - Assembly Picture
STEP 7:

Assemble the tock kick pieces, lay the cabinet onto the back panel and attach the toe kick by tightening the cam-locks.  Make sure the cam-locks attaching the frame pieces to the bottom shelf are also securely locked.

Kitchen Cabinets - Assembly Picture
STEP 8:

Attach the frame-to-door hinges and the door-to-door hinges using the silver screws provided.  Attach the double door assembly to the side panel.  Be careful as this placement will effect the doors' alignment.

Kitchen Cabinets - Assembly Picture
STEP 9:

Place the smaller shelf with the lazy susan tray onto the cleats.

Kitchen Cabinets - Assembly Picture
STEP 10:

Attach the clear rubber door bumpers and spring roller closure to complete assembly.

Kitchen Cabinets - Assembly Picture

Wall Cabinet

STEP 1:

Screw the posts into the pre-drilled holes of the side panels and frame.

Kitchen Cabinets - Assembly Picture
STEP 2:

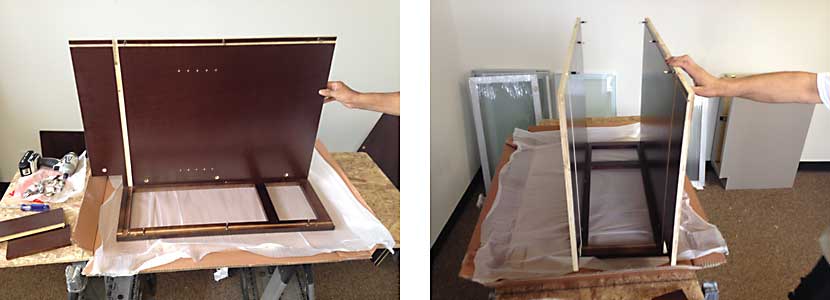

Insert the side panels into the grooves of the frame, leaving the cam-locks to be secured later in the assembly.

Kitchen Cabinets - Assembly Picture
STEP 3:

Insert both the top and bottom panels into the grooves of the side panels and frame.

Kitchen Cabinets - Assembly Picture
STEP 4:

Insert the back panel into the posts of the side panel and then separate the panels to set the back panel in place.

Kitchen Cabinets - Assembly Picture
STEP 5:

Secure the cam-locks of the back panel and also the interior cam-locks, securing the side panels to the frame.

Kitchen Cabinets - Assembly Picture
STEP 6:

Attach the hinges to the door and the door to the frame of the cabinet.

Kitchen Cabinets - Assembly Picture
STEP 7:

Install the shelves and apply the clear rubber bumpers to the door corners to complete assembly.

Kitchen Cabinets - Assembly Picture

Wall Diagonal Corner

STEP 1:

Screw the posts into the pre-drilled holes of the side panels, back panels and frame.

Kitchen Cabinets - Assembly Picture
STEP 2:

Attach angled brackets to the four corners of the frame and secure the side panels to the frame using the same angled brackets.

Kitchen Cabinets - Assembly Picture
STEP 3:

Place the top and bottom panels into the grooves of the side panels and frame, and attach one of the back panels, securing the panel with the cam-locks.

Kitchen Cabinets - Assembly Picture
STEP 4:

Attach the second back panel, leaving the interior cam-locks to be secured later in the assembly.

Kitchen Cabinets - Assembly Picture
STEP 5:

Install the larger corner brace at the bottom of the cabinet and the smaller brace at the top of the cabinet.  From the top, slide the clipped corner panel into the grooves of the back panels.

Kitchen Cabinets - Assembly Picture
STEP 6:

Stand the cabinet upright and secure the interior cam-locks of the second back panel.

Kitchen Cabinets - Assembly Picture
STEP 7:

Attach the hinges to the door and the door to the frame of the cabinet.

Kitchen Cabinets - Assembly Picture
STEP 8:

Install the shelves and apply the clear rubber bumpers to the door corners to complete assembly.

Kitchen Cabinets - Assembly Picture
