Individual Cabinet Assembly Instructions

Modern White

Recommended Tools:
Flathead / Philips Screwdriver
Required Tool
Electric Screwdriver
Recommended Tool
Rubber Head Hummer
Recommended Tool
3/4" Staples Gun
Recommended Tool
Hot Glue Gun
Recommended Tool

Assembly Instuction Videos

STEP 1:

Kitchen Cabinets - Assembly Picture
STEP 2:

Kitchen Cabinets - Assembly Picture
STEP 3:

Kitchen Cabinets - Assembly Picture
STEP 4:

Kitchen Cabinets - Assembly Picture

Base Cabinet

STEP 1:

It is best to re-install the doors after the installation of all cabinets.  Otherwise, doors might be damaged during the assembly and installation.

Kitchen Cabinets - Assembly Picture
STEP 2:

Remove the doors and the drawer face in order to prevent damage during the assembly and installation process.

Kitchen Cabinets - Assembly Picture
STEP 3:

Place both side panels into the grooves of the face frame. Make sure to align the metal clips properly (two on each side).

Kitchen Cabinets - Assembly Picture
STEP 4:

Slide in the bottom panel into the grooves of the side panels and the face frame.

Kitchen Cabinets - Assembly Picture
STEP 5:

Secure all clips using the supplied screws.

Kitchen Cabinets - Assembly Picture
STEP 6:

Place the back panel in its' place (make sure all the clips are aligned properly) and secure it.

Kitchen Cabinets - Assembly Picture
STEP 7:

Place the toe kick panel and secure it with the metal clips.

Kitchen Cabinets - Assembly Picture
STEP 8:

Attach the supplied plastic corner brackets using screws.

Kitchen Cabinets - Assembly Picture
STEP 9:

Secure the drawer glides holds to the back panel using the pre-drilled holes for alignment.

Kitchen Cabinets - Assembly Picture
STEP 10:

Connect the drawer glides to the drawer glides holders.

Kitchen Cabinets - Assembly Picture
STEP 11:

Connect the front of the drawer glide to the face frame. Use any of the pre-drilled holes for alignment.

Kitchen Cabinets - Assembly Picture
STEP 12:

Connect the drawer's side panel to the back panel. No screws are needed.

Kitchen Cabinets - Assembly Picture
STEP 13:

Connect the other side panel and slide in the bottom panel into the grooves.

Kitchen Cabinets - Assembly Picture
STEP 14:

Connect the face frame to the drawer.

Kitchen Cabinets - Assembly Picture
STEP 15:

Place the drawer on the drawer glides. Insert the back drawer holder into the pre-drilled hole in the drawer as shown on the left side of the photo.

Kitchen Cabinets - Assembly Picture
STEP 16:

Insert the drawer glide pin into the pre-drilled hole on the bottom of the side panel. Use the sheave on the bottom of the pin for adjustments and alignments.

Kitchen Cabinets - Assembly Picture
STEP 17:

Place the bottom shelves using the supplied shelves holders.

Kitchen Cabinets - Assembly Picture

Tall Pantry

STEP 1:

Remove the doors from the face frame in order to prevent damages during the assembly or the installation process.

Kitchen Cabinets - Assembly Picture
STEP 2:

Place the side panel into the grooves of the face frame. Make sure all metal clips are aligned properly and that the toe kick area (on the right side of the panel in the photo) is facing to the bottom of the cabinet (where the big opening is).

Kitchen Cabinets - Assembly Picture
STEP 3:

Make sure all the metal clips are secured properly using the supplied screws.

Kitchen Cabinets - Assembly Picture
STEP 4:

Repeat the last two steps with the other side panel.

Kitchen Cabinets - Assembly Picture
STEP 5:

Slide in the middle divider followed by the top and bottom panels into the grooves of the face frame and the side panels. Make sure all the metal clips are aligned and secured.

Kitchen Cabinets - Assembly Picture
STEP 6:

Place the back panel into the grooves of the side panels. Make sure ALL the metal clips are aligned and secured.

Kitchen Cabinets - Assembly Picture
STEP 7:

Place the toe kick panel and secure it using the screws of the metal clips.

Kitchen Cabinets - Assembly Picture
STEP 8:

Place and adjust all the shelves using the supplied shelves holders.

Kitchen Cabinets - Assembly Picture
STEP 9:

Congratulations, your cabinet is ready.

Kitchen Cabinets - Assembly Picture

Wall Cabinet

STEP 1:

Locate the face frame.

Kitchen Cabinets - Assembly Picture
STEP 2:

Remove the door in order to prevent damages during the assembly or the installation process.

Kitchen Cabinets - Assembly Picture
STEP 3:

Secure the side to the frame by using a staple gun (3/4'' Deep by 1/4'' Wide staples are recommended).

Staple the side every 6''.

Kitchen Cabinets - Assembly Picture
STEP 4:

Repeat the last step with the other side panel.

Kitchen Cabinets - Assembly Picture
STEP 5:

Place the bottom panel into the grooves and secure the metal clips on the bottom of the cabinet.

Kitchen Cabinets - Assembly Picture
STEP 6:

Place the top panel into the grooves of the face frame and secure the metal clips on the top of the cabinet.

Kitchen Cabinets - Assembly Picture
STEP 7:

Slide in the back panel into the grooves in the side panels.

Kitchen Cabinets - Assembly Picture
STEP 8:

Secure the back panel using four screws in the pre-drilled holes.

Kitchen Cabinets - Assembly Picture
STEP 9:

Place the shelves using the supplied shelves holders.

Kitchen Cabinets - Assembly Picture
STEP 10:

Congratulations, your cabinet is now ready.

Kitchen Cabinets - Assembly Picture

Wall Diagonal Corner

STEP 1:

Locate the face frame.

Kitchen Cabinets - Assembly Picture
STEP 2:

Remove the door in order to prevent damages during the assembly or the installation process.

Kitchen Cabinets - Assembly Picture
STEP 3:


Connect the front side panel into the face frame using the grooves in the face frame. The metal clips will secure and hold the front side panel in 45 degrees angle.







Kitchen Cabinets - Assembly Picture
STEP 4:

Repeat the last step with the other front side panel.

Kitchen Cabinets - Assembly Picture
STEP 5:


Place the top panel and bottom panel into the grooves of the face frame and the front side panels. Secure them using the screws of the metal clips.







Kitchen Cabinets - Assembly Picture
STEP 6:

Place the back side panel into the grooves of the top and bottom panels and secure it using the screws of the metal clips.

Kitchen Cabinets - Assembly Picture
STEP 7:

Repeat the last step with the other back side panel.

Kitchen Cabinets - Assembly Picture
STEP 8:

Slide in the back panel into the grooves of the back side panels.

Kitchen Cabinets - Assembly Picture
STEP 9:

Secure the back panel using two screws in the pre-drilled holes.

Kitchen Cabinets - Assembly Picture
STEP 10:

Place the shelves using the supplied shelves holders.

Kitchen Cabinets - Assembly Picture

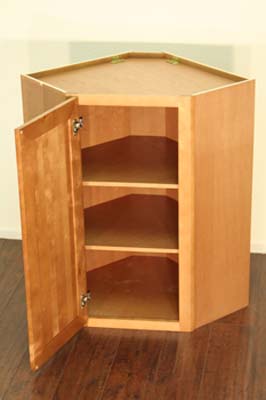

STEP 11:

Congratulations, your cabinet is now ready.


Kitchen Cabinets - Assembly Picture
